Vertex Input Data Processing

This chapter is an overview of the Fixed-Function Vertex Processing chapter in the spec to help give a high level understanding of how an application can map data to the vertex shader when using a graphics pipeline.

It is also important to remember that Vulkan is a tool that can be used in different ways. The following are examples for educational purposes of how vertex data can be laid out.

1. Binding and Locations

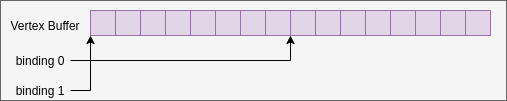

A binding is tied to a position in the vertex buffer from which the vertex shader will start reading data out of during a vkCmdDraw* call. Changing the bindings does not require making any alterations to an app’s vertex shader source code.

As an example, the following code matches the diagram of how bindings work.

// Using the same buffer for both bindings in this example
VkBuffer buffers[] = { vertex_buffer, vertex_buffer };
VkDeviceSize offsets[] = { 8, 0 };

vkCmdBindVertexBuffers(
                        my_command_buffer, // commandBuffer
                        0,                 // firstBinding
                        2,                 // bindingCount
                        buffers,           // pBuffers
                        offsets,           // pOffsets
                      );
vertex_input_data_processing_binding

The following examples show various ways to set your binding and location values depending on your data input.

1.1. Example A - packed data

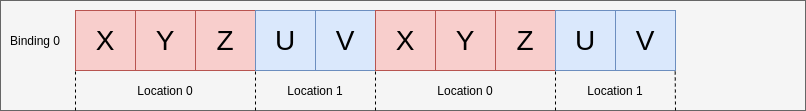

For the first example, the per-vertex attribute data will look like:

struct Vertex {
    float   x, y, z;
    uint8_t u, v;
};
vertex_input_data_processing_example_a

The pipeline create info code will look roughly like:

const VkVertexInputBindingDescription binding = {
    0,                          // binding
    sizeof(Vertex),             // stride
    VK_VERTEX_INPUT_RATE_VERTEX // inputRate
};

const VkVertexInputAttributeDescription attributes[] = {
    {
        0,                          // location
        binding.binding,            // binding
        VK_FORMAT_R32G32B32_SFLOAT, // format
        0                           // offset
    },
    {
        1,                          // location
        binding.binding,            // binding
        VK_FORMAT_R8G8_UNORM,       // format
        3 * sizeof(float)           // offset
    }
};

const VkPipelineVertexInputStateCreateInfo info = {
    1,             // vertexBindingDescriptionCount
    &binding,      // pVertexBindingDescriptions
    2,             // vertexAttributeDescriptionCount
    &attributes[0] // pVertexAttributeDescriptions
};

The GLSL code that would consume this could look like

layout(location = 0) in vec3 inPos;
layout(location = 1) in uvec2 inUV;

1.2. Example B - padding and adjusting offset

This example examines a case where the vertex data is not tightly packed and has extra padding.

struct Vertex {
    float   x, y, z, pad;
    uint8_t u, v;
};

The only change needed is to adjust the offset at pipeline creation

        1,                          // location
        binding.binding,            // binding
        VK_FORMAT_R8G8_UNORM,       // format
-        3 * sizeof(float)           // offset
+        4 * sizeof(float)           // offset

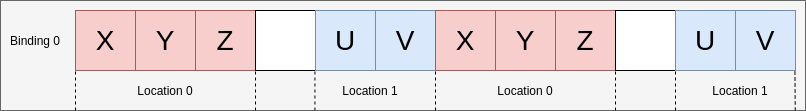

As this will now set the correct offset for where u and v are read in from.

vertex_input_data_processing_example_b_offset

1.3. Example C - non-interleaved

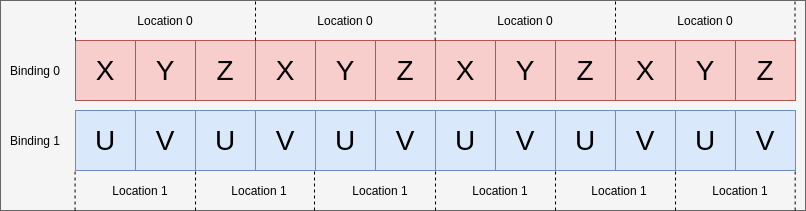

Sometimes data is not interleaved, in this case, you might have the following

float position_data[] = { /*....*/ };
uint8_t uv_data[] = { /*....*/ };
vertex_input_data_processing_example_c

In this case, there will be 2 bindings, but still 2 locations

const VkVertexInputBindingDescription bindings[] = {
    {
        0,                          // binding
        3 * sizeof(float),          // stride
        VK_VERTEX_INPUT_RATE_VERTEX // inputRate
    },
    {
        1,                          // binding
        2 * sizeof(uint8_t),        // stride
        VK_VERTEX_INPUT_RATE_VERTEX // inputRate
    }
};

const VkVertexInputAttributeDescription attributes[] = {
    {
        0,                          // location
        bindings[0].binding,        // binding
        VK_FORMAT_R32G32B32_SFLOAT, // format
        0                           // offset
    },
    {
        1,                          // location
        bindings[1].binding,        // binding
        VK_FORMAT_R8G8_UNORM,       // format
        0                           // offset
    }
};

const VkPipelineVertexInputStateCreateInfo info = {
    2,             // vertexBindingDescriptionCount
    &bindings[0],  // pVertexBindingDescriptions
    2,             // vertexAttributeDescriptionCount
    &attributes[0] // pVertexAttributeDescriptions
};

The GLSL code does not change from Example A

layout(location = 0) in vec3 inPos;
layout(location = 1) in uvec2 inUV;

1.4. Example D - 2 bindings and 3 locations

This example is to help illustrate that the binding and location are independent of each other.

In this example, the data of the vertices is laid out in two buffers provided in the following format:

struct typeA {
    float   x, y, z; // position
    uint8_t u, v;    // UV
};

struct typeB {
    float x, y, z; // normal
};

typeA a[] = { /*....*/ };
typeB b[] = { /*....*/ };

and the shader being used has the interface of

layout(location = 0) in vec3 inPos;
layout(location = 1) in vec3 inNormal;
layout(location = 2) in uvec2 inUV;

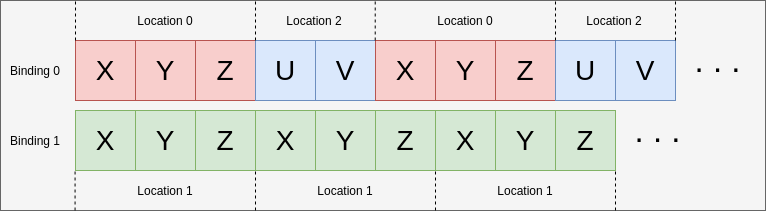

The following can still be mapped properly by setting the VkVertexInputBindingDescription and VkVertexInputAttributeDescription accordingly:

vertex_input_data_processing_example_d
const VkVertexInputBindingDescription bindings[] = {
    {
        0,                          // binding
        sizeof(typeA),              // stride
        VK_VERTEX_INPUT_RATE_VERTEX // inputRate
    },
    {
        1,                          // binding
        sizeof(typeB),              // stride
        VK_VERTEX_INPUT_RATE_VERTEX // inputRate
    }
};

const VkVertexInputAttributeDescription attributes[] = {
    {
        0,                          // location
        bindings[0].binding,        // binding
        VK_FORMAT_R32G32B32_SFLOAT, // format
        0                           // offset
    },
    {
        1,                          // location
        bindings[1].binding,        // binding
        VK_FORMAT_R32G32B32_SFLOAT, // format
        0                           // offset
    },
    {
        2,                          // location
        bindings[0].binding,        // binding
        VK_FORMAT_R8G8_UNORM,       // format
        3 * sizeof(float)           // offset
    }
};

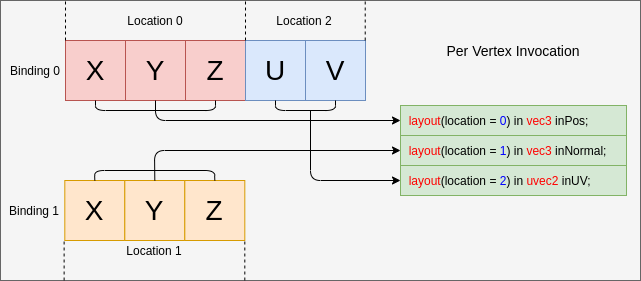

vertex_input_data_processing_example_d_vertex

2. Example E - understanding input attribute format

The VkVertexInputAttributeDescription::format can be the cause of confusion. The format field just describes the size and type of the data the shader should read in.

The reason for using the VkFormat values is they are well defined and match the input layouts of the vertex shader.

For this example the vertex data is just four floats:

struct Vertex {
    float a, b, c, d;
};

The data being read will be overlapped from how the format and offset is set

const VkVertexInputBindingDescription binding = {
    0,                          // binding
    sizeof(Vertex),             // stride
    VK_VERTEX_INPUT_RATE_VERTEX // inputRate
};

const VkVertexInputAttributeDescription attributes[] = {
    {
        0,                          // location
        binding.binding,            // binding
        VK_FORMAT_R32G32_SFLOAT,    // format - Reads in two 32-bit signed floats ('a' and 'b')
        0                           // offset
    },
    {
        1,                          // location
        binding.binding,            // binding
        VK_FORMAT_R32G32B32_SFLOAT, // format - Reads in three 32-bit signed floats ('b', 'c', and 'd')
        1 * sizeof(float)           // offset
    }
};

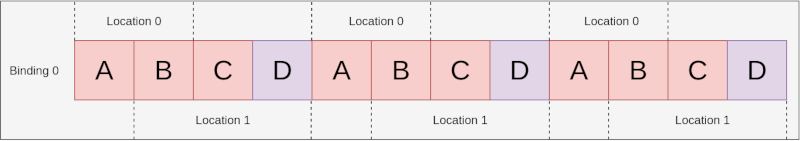

When reading in the data in the shader the value will be the same where it overlaps

layout(location = 0) in vec2 in0;
layout(location = 1) in vec2 in1;

// in0.y == in1.x
vertex_input_data_processing_understanding_format

It is important to notice that in1 is a vec2 while the input attribute is VK_FORMAT_R32G32B32_SFLOAT which doesn’t fully match. According to the spec:

If the vertex shader has fewer components, the extra components are discarded.

So in this case, the last component of location 1 (d) is discarded and would not be read in by the shader.

3. Components Assignment

The spec explains more in detail about the Component assignment. The following is a general overview of the topic.

3.1. Filling in components

Each location in the VkVertexInputAttributeDescription has 4 components. The example above already showed that extra components from the format are discarded when the shader input has fewer components.

Note
Example

VK_FORMAT_R32G32B32_SFLOAT has 3 components while a vec2 has only 2

For the opposite case, the spec says:

If the format does not include G, B, or A components, then those are filled with (0,0,1) as needed (using either 1.0f or integer 1 based on the format) for attributes that are not 64-bit data types.

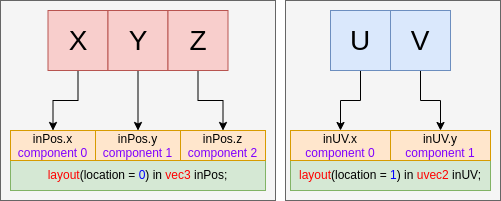

This means the example of

layout(location = 0) in vec3 inPos;
layout(location = 1) in uvec2 inUV;
vertex_input_data_processing_fill_0

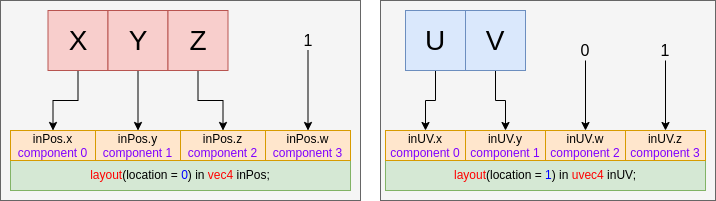

would fill the examples above with the following

layout(location = 0) in vec4 inPos;
layout(location = 1) in uvec4 inUV;
vertex_input_data_processing_fill_1
